Engine Driven Welders incorporate a gasoline, diesel, or propane fueled engine coupled to an electrical generator to produce power for Stick, TIG, MIG and Flux-Cored welding. Engine driven welders are typically transported on a truck or trailer and are primarily used outdoors. The electricity generated by an engine driven welder powers fans, pumps, air compressors or other electrical tools commonly found on jobsites. During power outages, an engine driven welder can also be used as a backup generator.

• 250A Class Gas-Powered welder/generator
• 250A Class LP-Powered welder/generator
• 300A Class Gas-Powered welder/generator
• 500A Class Diesel-Powered welder/generator

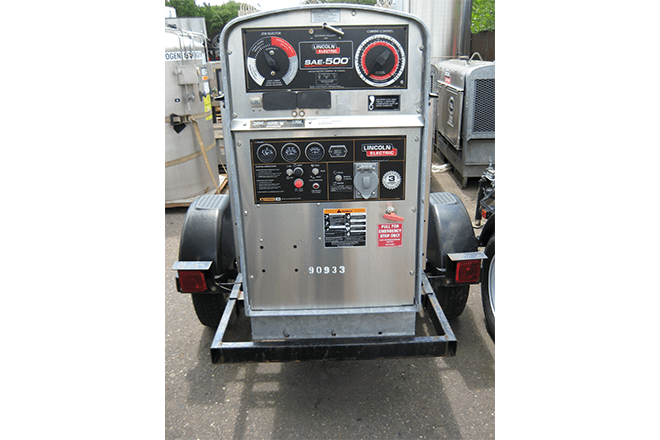

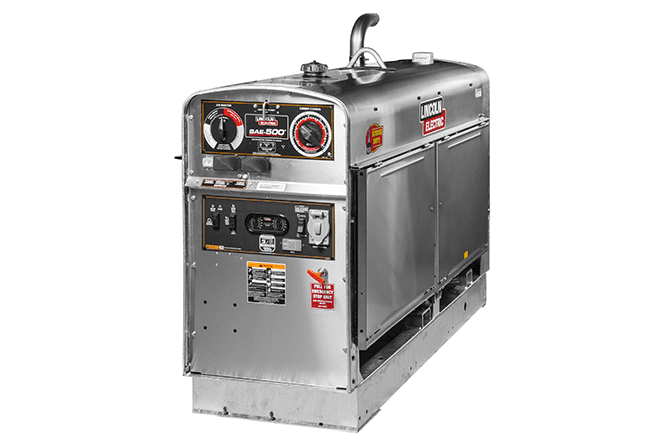

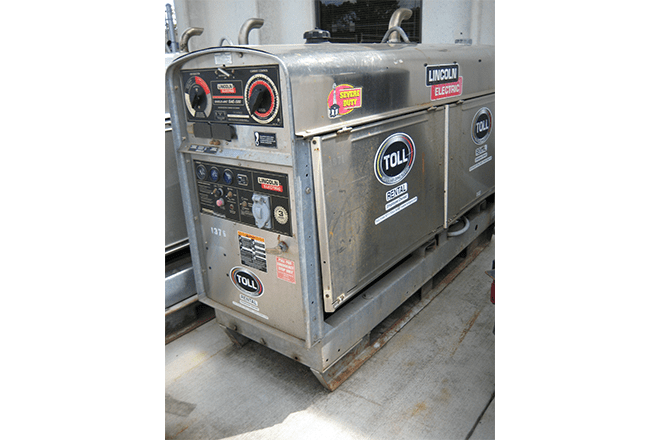

SAE 500 SD NewSAE 500SD TrailerSAE 500 SD Skid
Lincoln Engine Drive

SAE-500 Severe Duty

The SAE-500 Severe Duty is the preferred choice for a great arc performance, design simplicity, reliability and ruggedness. Designed especially for pipeline welding and field construction. The SAE-500 is powered by a heavy duty Deutz diesel engine which offers low maintenance and long life.

SPECIFICATIONS
Rated Output:  500A/40V/60%     400A/40V/100%
Output Range: 80-575A DC / 3,000 Watts
Processes: Stick / TIG / Flux-Cored / Arc Gouging
Weight: 2,048 lbs (928.97 kg)

OTHER FEATURES:
  • Custom forklift skid installed – w/ lifting eye
  • Dual continuous control – continuous adjustment of voltage and current
  • Diesel motor with block heater installed
  • Capable of continuously running 6 Multi-Welds

Available with or without highway trailer

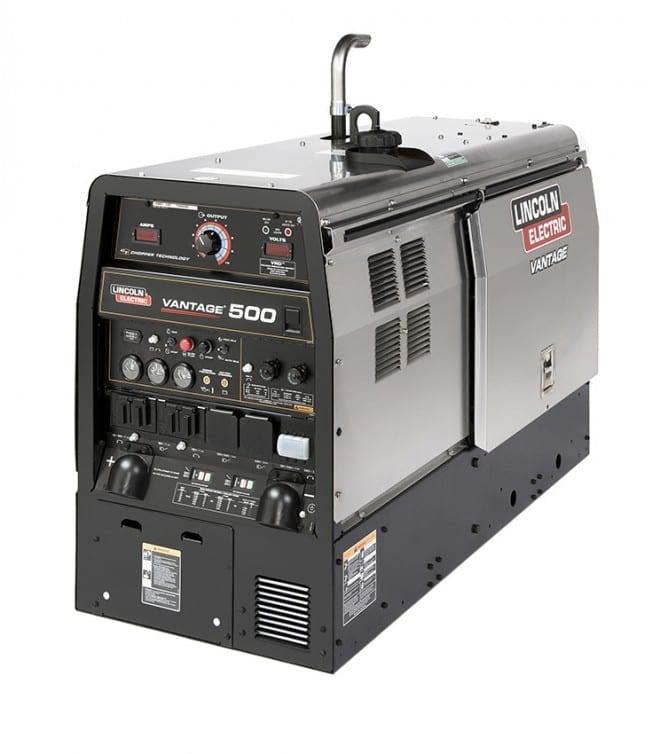

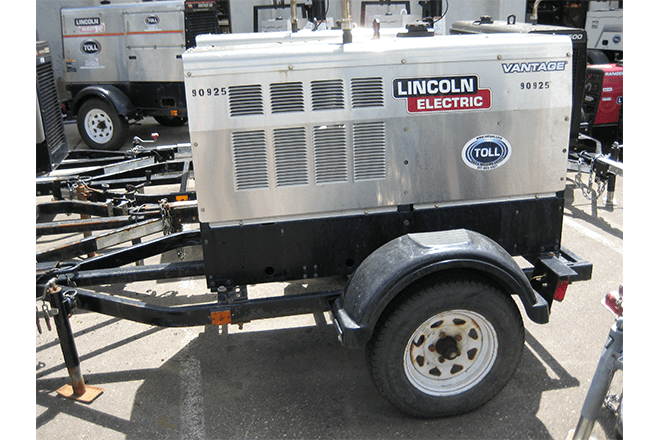

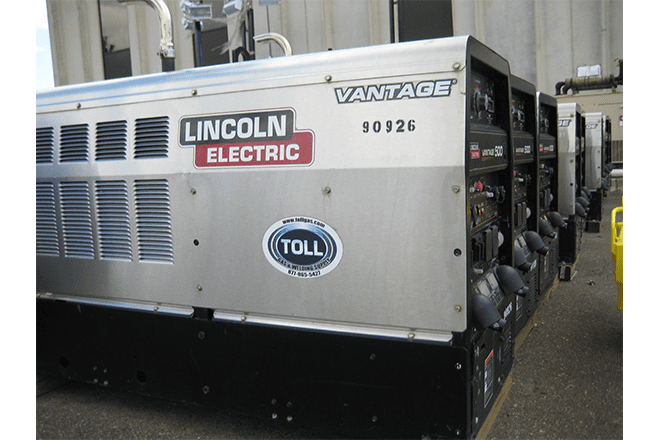

Vantage 500 feetVantage TrailerVantage 500 Compackt Case
Lincoln Engine Drive

Vantage 500

COMPACT DESIGN

Get a 500 amp welder in a compact case; it’s the same size as the Vantage 300 and 400. The use of a a turbo-charged diesel engine with Lincoln Electric Chopper Technology® makes this possible. Also, the low weight makes the Vantage 500 Compact a great choice where space and weight capacity are limited.

SPECIFICATIONS
Rated Output:  500A/40V/100%     525A/38V/60%
Output Range: 30-525A DC
Generator Output: 22KW peak – 20 KW auxiliary 3-phase power (240V – 30A breaker)  / 13KW peak – 12 KW auxiliary 1-phase power (120V w/ GFCI)
Processes: Stick / TIG / Flux-Cored / Arc Gouging
Weight: 1,290 lbs (585.14 kg)

OTHER FEATURES:
  • Lifting eye
  • Diesel motor with block heater installed

Available with or without highway trailer

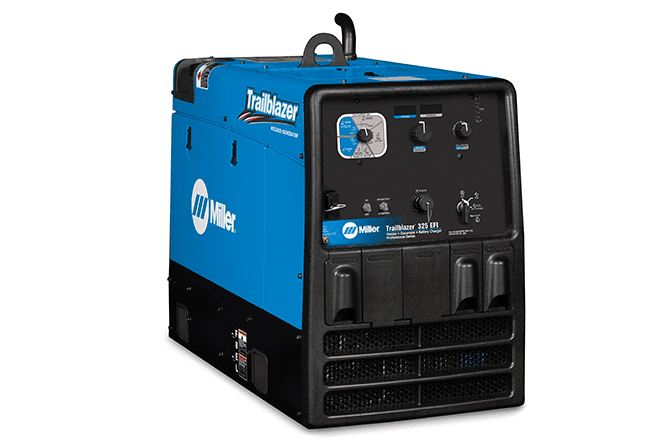

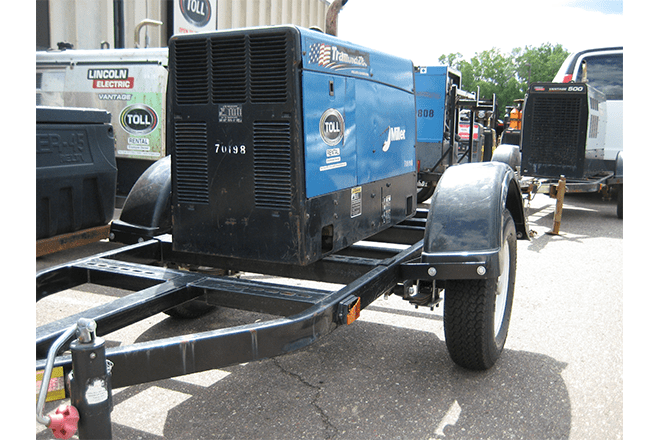

Trailblazer TrailerTrailblazer CartEngine Drive Equipment Rental
Miller Engine Drive

Trailblazer 325

You need to minimize worksite fuel consumption and noise — and maximize productivity. Which is why you need a Trailblazer welder/generator. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

SPECIFICATIONS
Rated Output:  225A/25V/100%     250A/25V/60%
Output Range: 10-325A
Generator Output:  12KW peak – 10.5KW Aux 1-phase power
Processes: Stick / TIG / Flux-Cored / MIG / Gouging
Weight: 460 lbs (227 kg)

Engine Options: 23.5 HorsePower Kohler Gasoline Engine


Available machine only, all-terrain cart, or highway trailer
Bobcat 250
Miller Engine Drive

Bobcat 250 Propane

Rugged welder/generator is great for Stick and Flux-Cored welding and designed for maintenance/repair operations, construction, farm, ranch and generator use.

SPECIFICATIONS
Rated Output:  225A/25V/100%     250A/25V/60%
Output Range: 40-250A
Generator Output:  10KW peak  1-phase power
Processes: Stick / TIG / Flux-Cored / MIG
Weight: 501 lbs (227 kg)

Engine Options: LP or Gas


Available machine only, all-terrain cart, or highway trailer
